TCN Intelligent Control Card
Industrial Ethernet conveyor control with PROFINET / EtherNet/IP
About TCN-20xZ
The TCN-20xZ extends the proven TCI architecture into the world of industrial Ethernet. Each card drives two MDRs while exposing PROFINET or EtherNet/IP communication to integrate seamlessly with Siemens, Rockwell, and other major PLC ecosystems.
Cards daisy-chain together over standard Cat 5e/6 cabling — no separate fieldbus wiring required. Configuration, monitoring, and diagnostics are all available through the PLC, dramatically simplifying commissioning and maintenance for large conveyor networks.
TCN supports the same Zero Pressure Accumulation (ZPA) logic as TCI, so existing TCI conveyors can be upgraded to TCN without re-engineering the mechanical layout. Ideal for plants standardizing on PROFINET or EtherNet/IP.
Engineered for material handling
- PROFINET and EtherNet/IP support
- 2-zone simultaneous MDR control
- Deterministic industrial networking
- Daisy-chain Ethernet topology
- Compatible with major PLC brands (Siemens / Rockwell)
- Built-in ZPA mode
- Integrated diagnostics over Ethernet
At a glance
Full specifications available in the datasheet.
- Channels
- 2 zones / 2 MDRs
- Fieldbus
- PROFINET / EtherNet/IP
- Input voltage
- 24 VDC
- Network topology
- Daisy-chain over Cat 5e/6
- PLC compatibility
- Siemens, Rockwell, Omron
- Configuration
- PLC engineering tool + DIP
Where TCN-20xZ fits
TRUENexus
A PC-based management utility for TCN-based conveyor zones. Visualize your network, configure each zone, monitor system health, and push firmware updates — all from one tool.

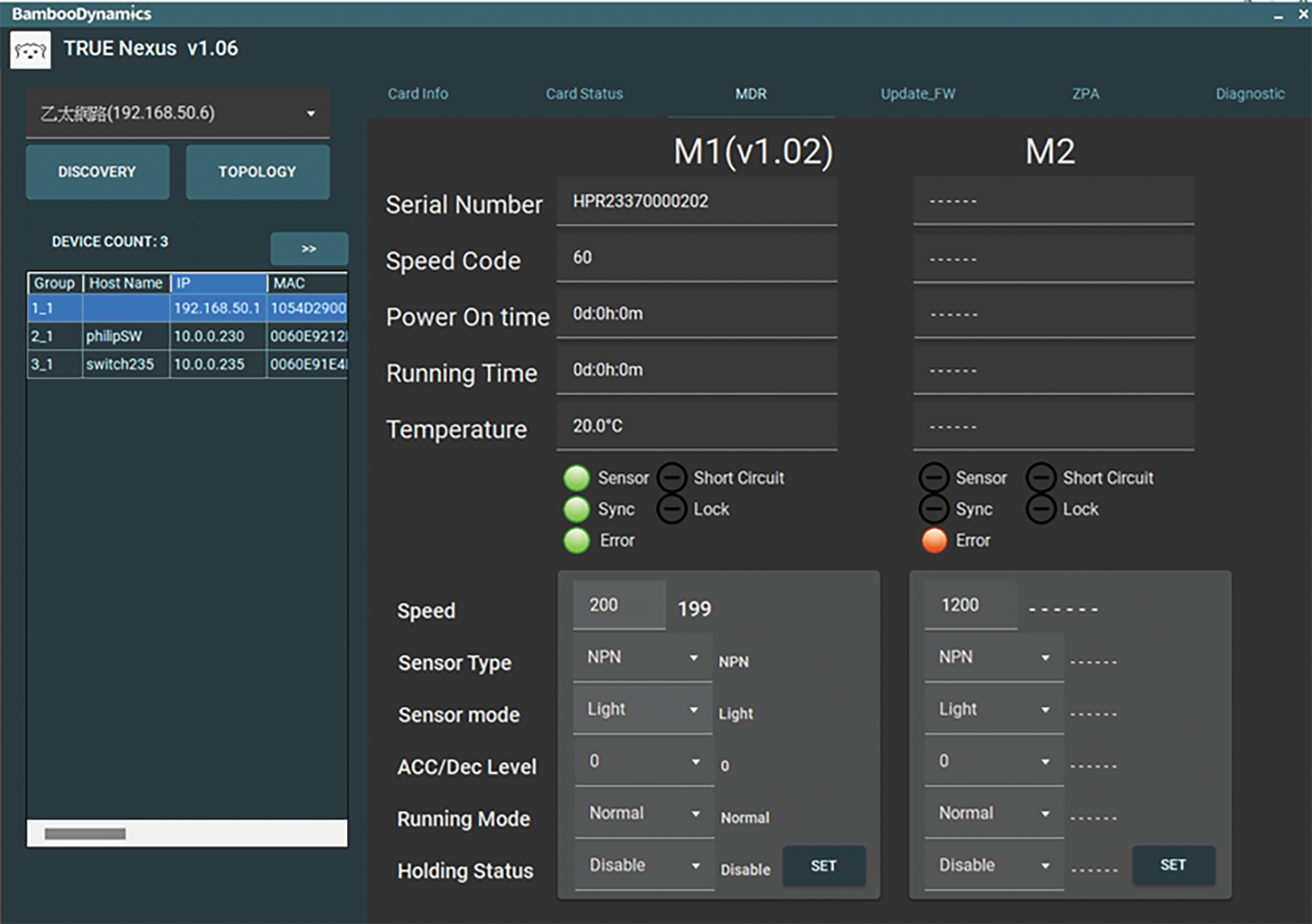

MDR Control & Status

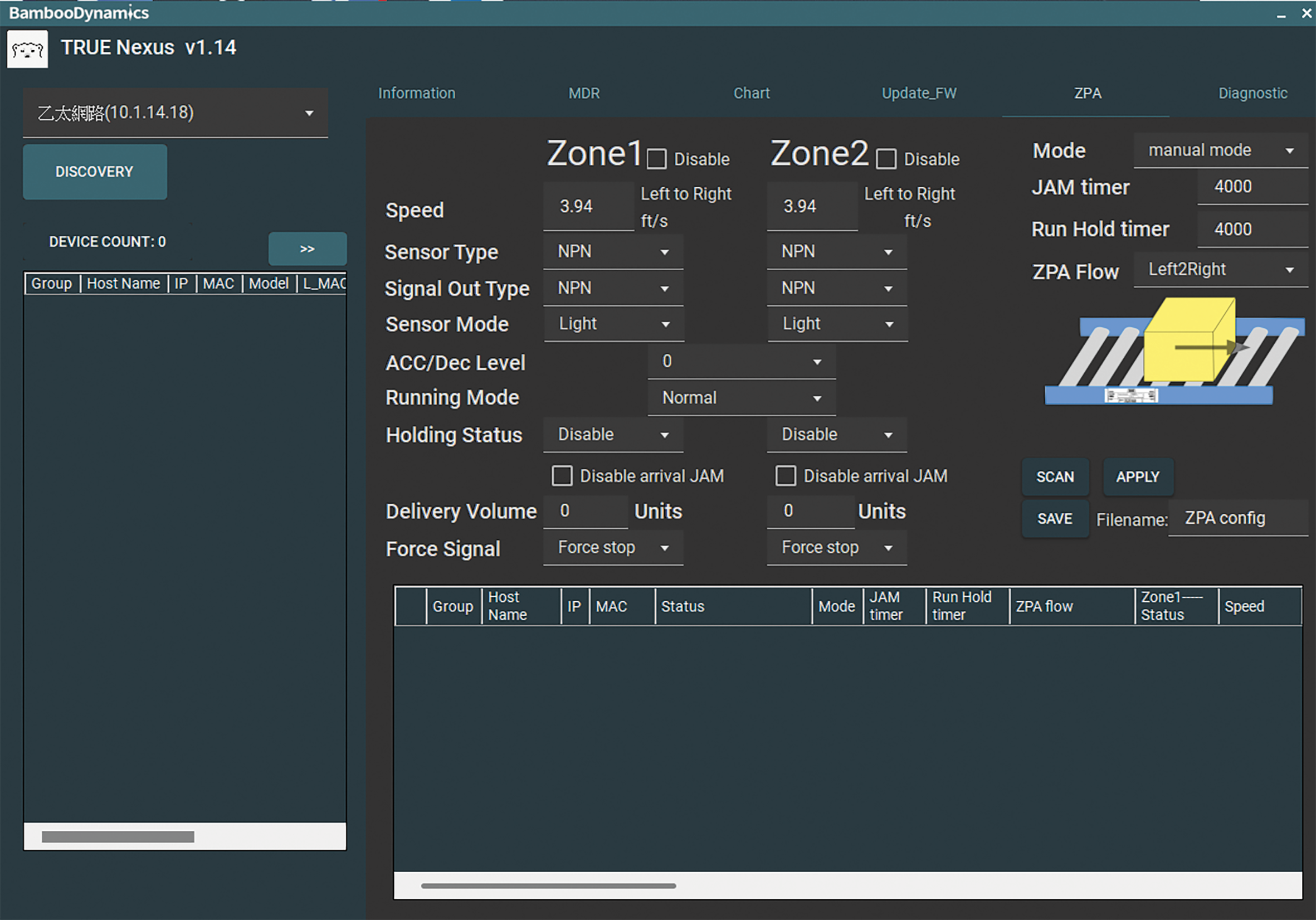

ZPA Zone Setup
Topology Map
Visualize connected zones and card status across the conveyor line
Zone Config
Set ZPA mode, speed, and sensor parameters per zone
Live Diagnostics
Real-time error logging and system health monitoring
Firmware Update
Push firmware to all connected TCN cards simultaneously
Downloads
Product documentation and catalogue available upon request.
