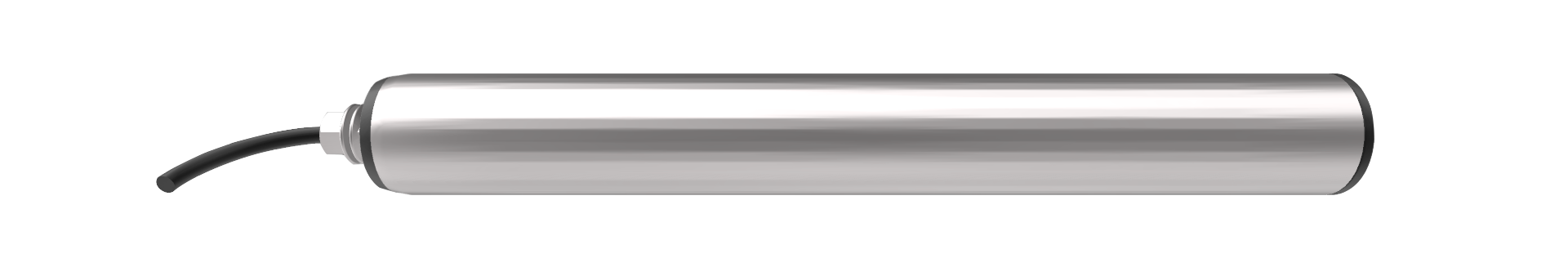

Straight (S)
TRUERoller Motor Driven Rollers
DC brushless motor rollers with integrated gearbox for efficient conveyor automation
About TRUERoller MDR
TRUERoller MDRs replace traditional belt or chain drive conveyors with embedded, intelligent rollers. Each unit integrates a high-efficiency brushless DC motor and gearbox inside a precision steel roller tube — in zinc-plated or stainless steel, rated IP54 or IP65.
Because the motor is self-contained, conveyors built with TRUERoller MDRs require no external drives or motor mounts. Energy is consumed only in active zones, significantly reducing operating costs. At 50 dB (no-load, 1 m), noise levels are well below conventional conveyor drives.
Pair with TCI (I/O) or TCN (EtherNet/IP / PROFINET) intelligent control cards for Zero Pressure Accumulation (ZPA) zones. Speed codes from 20 to 120 m/min and static load ratings from 20 to 60 kg (depending on installation length) cover a wide range of payload requirements. Each MDR also works with the TRUEProtect TP24 overvoltage protector to guard against voltage spikes from sudden braking.
Engineered for material handling
- Brushless DC motor — 24 VDC operating voltage
- Roller outer diameters: 48.3 mm and 50.0 mm
- Operating temp 0°C to +40°C
- IP54 or IP65 ingress protection
- Zinc-plated steel or stainless steel tube options
- Direct integration with TCI / TCN control cards
- Works with TRUEProtect TP24 overvoltage protector
At a glance
Full specifications available in the datasheet.
- Motor type
- DC Brushless
- Operating voltage
- 24 VDC
- Roller outer diameter
- 48.3 mm / 50.0 mm
- Power (Normal / TURBO)
- 35 W / 55 W
- Efficiency
- ~65%
- Noise
- 50 dB (no-load, 1 m)
- Operating temp
- 0°C to +40°C
- Ambient humidity
- 10% to 90%, non-condensing
- Installation length
- 400 to 1200 mm
- Cable length
- 120 cm
- IP rating
- IP54 / IP65
- Tube material
- Zinc-plated steel / Stainless steel
- Certifications
- CE (Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU), RoHS
- Drive head options

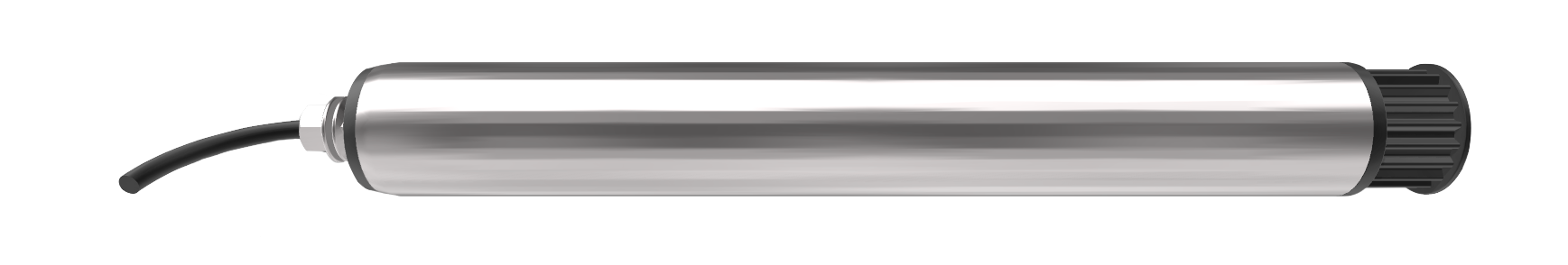

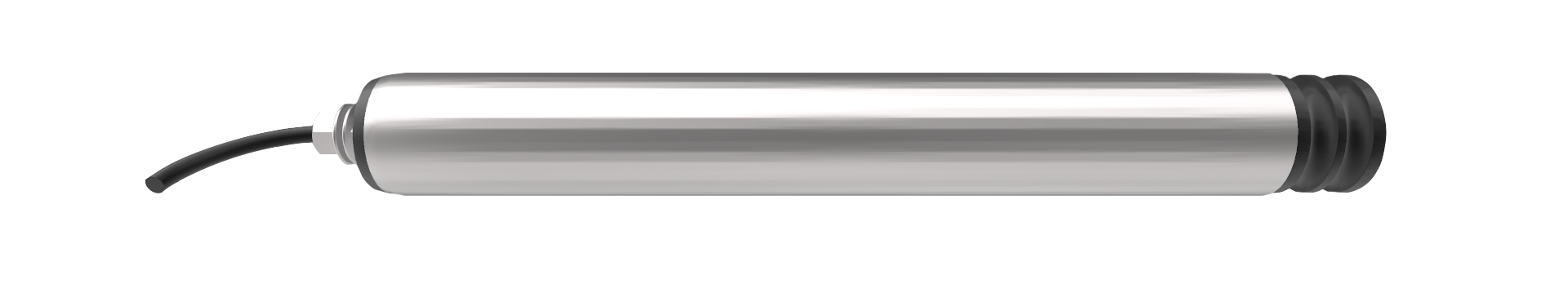

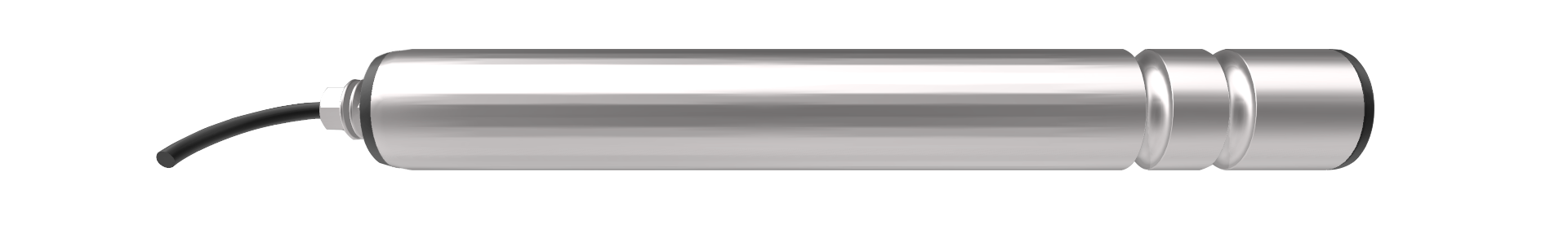

- Straight (S), Round Groove (R), Poly-V (V), Poly-O (O), Toothed (T)
Where TRUERoller MDR fits
Downloads
Product documentation and catalogue available upon request.
